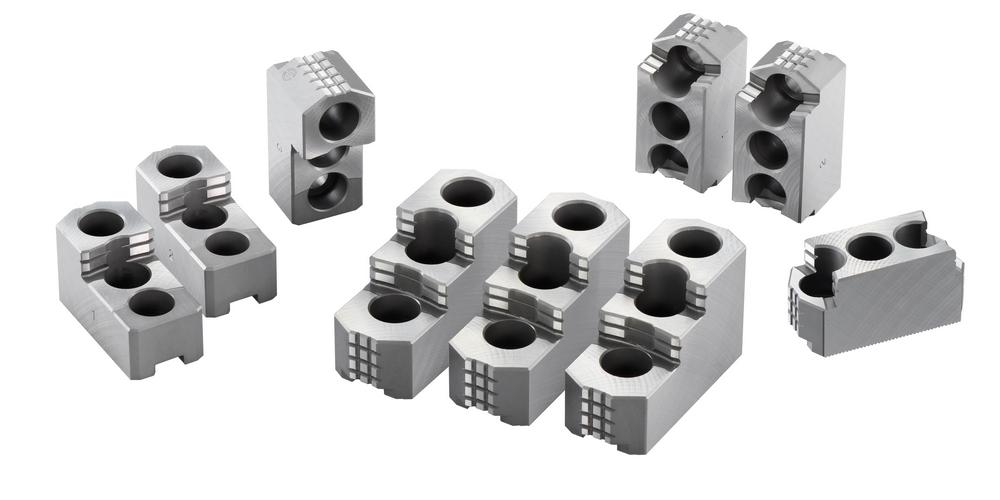

Nシリーズ用ハードジョー

パワーチャック用ハードジョー把握範囲一覧

ジョー型式をクリックすると各ジョーの寸法図を表示します。

チャック	ジョー寸法図	3Dデータ	外径把握								内径把握				ハードジョー外径把握可動範囲
チャック	ジョー寸法図	3Dデータ	A1	Fig.NO.	A2	Fig.NO.	A3	Fig.NO.	A4	Fig.NO.	B1	Fig.NO.	B2	Fig.NO.	ハードジョー内径把握可動範囲
N-04	HB04N1	Parasolid	---	---	14-20	11	75-81	11	---	---	---	---	---	---	14-20, 27-36, 41-50, 75-81, 102-110
N-04	HB04N1	STEP	27-36	10	41-50	12	102-110	12	---	---	77-85	10	---	---	77-85
N-05	HB05C1	Parasolid	10-15	9	14-22	11	29-37	11	---	---	---	---	---	---	10-22, 29-37, 43-61, 68-76
N-05	HB05C1	STEP	43-54	10	53-61	12	68-76	12	---	---	---	---	---	---	---
N-06	HB06A1	Parasolid	19-34	9	---	---	100-116	11	---	---	77-92	9	---	---	19-34, 58-76, 100-116, 139-158
	HB06A1	STEP	58-76	10	---	---	139-158	12	---	---	116-134	10	---	---	77-92, 116-134
	HB06B1	Parasolid	20-32	5	37-49	5	24-39	7	50-65	7	134-147	5	148-163	7	20-49, 50-88, 89-104
	HB06B1	STEP	56-71	6	73-88	6	63-78	8	89-104	8	---	---	---	---	134-147, 148-163
N-08	HB08A1	Parasolid	33-55	1	19-41	3	81-103	3	117-139	3	112-134	1	148-170	1	19-55, 67-108, 117-154, 165-190
N-08	HB08A1	STEP	81-106	2	67-92	4	129-154	4	165-190	4	160-185	2	196-210	2	112-134, 148-185, 196-210
N-10	HB10A1	Parasolid	17-51	1	29-69	3	115-155	3	149-189	3	102-136	1	136-170	1	17-69, 71-249
N-10	HB10A1	STEP	71-111	2	89-129	4	175-215	4	209-249	4	156-196	2	190-230	2	102-230
N-12	HB12B1	Parasolid	46-120	9	---	---	170-244	11	---	---	123-197	9	---	---	46-304
N-12	HB12B1	STEP	106-180	10	---	---	230-304	12	---	---	183-257	10	---	---	123-257
N-15	HB15N1	Parasolid	58-118	1	34-85	3	172-223	3	226-277	3	174-234	1	227-287	1	34-223, 226-364
N-15	HB15N1	STEP	142-202	2	112-172	4	250-310	4	304-364	4	258-318	2	311-371	2	174-371
N-18	HB15N1	Parasolid	119-179	1	86-146	3	224-284	3	278-338	3	235-295	1	288-348	1	86-425
N-18	HB15N1	STEP	203-263	2	173-233	4	311-371	4	365-425	4	319-379	2	372-432	2	235-432
N-21	HB18B1	Parasolid	59-201	9	---	---	263-399	11	---	---	181-323	9	---	---	59-501
N-21	HB18B1	STEP	161-297	10	---	---	359-501	12	---	---	283-419	10	---	---	181-419
N-24	HB18B1	Parasolid	137-279	9	---	---	341-477	11	---	---	259-401	9	---	---	137-579
N-24	HB18B1	STEP	239-375	10	---	---	437-579	12	---	---	361-497	10	---	---	259-497

grippingrange_hardjaw
